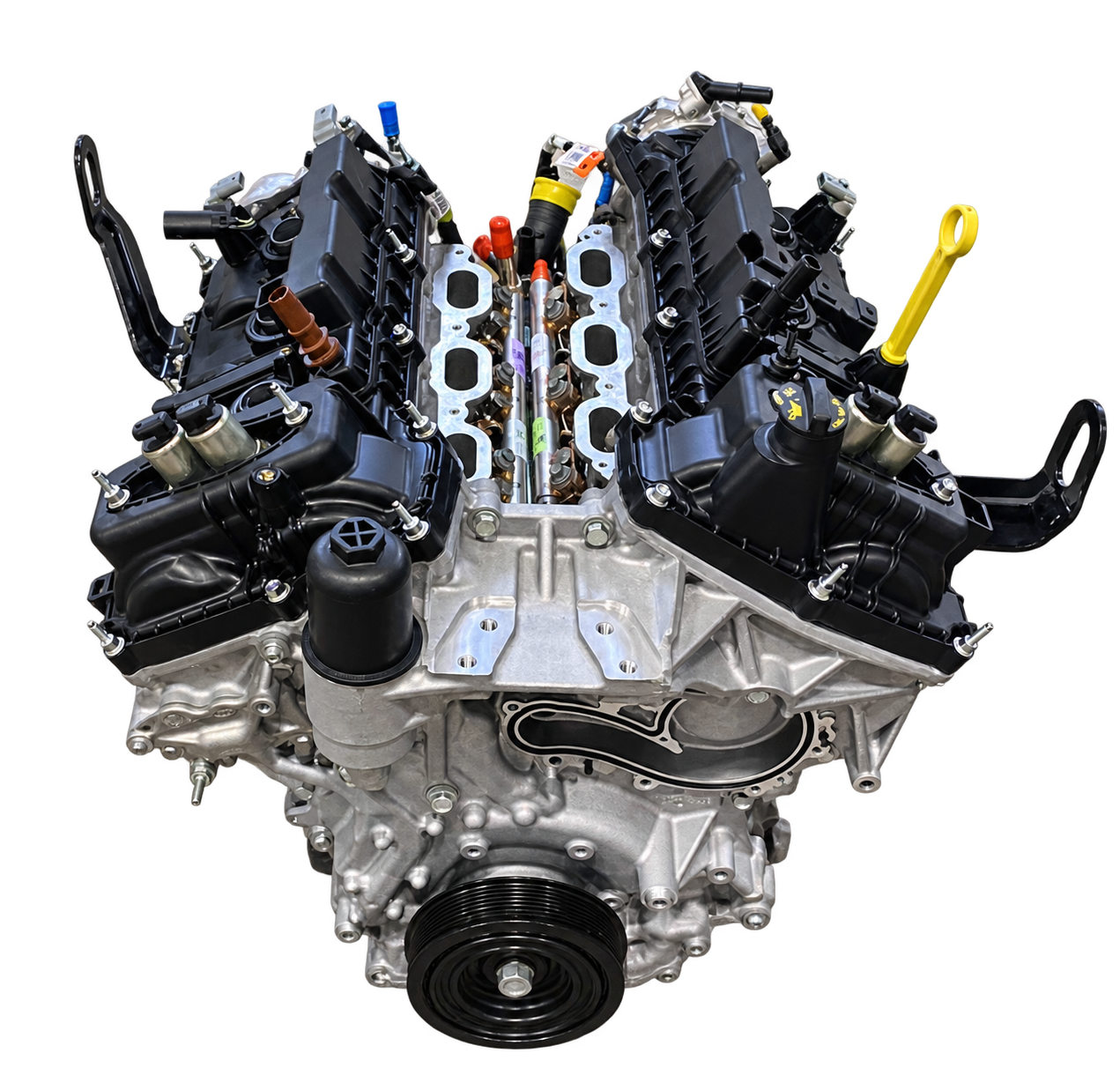

Crate Engine for Ford 2.7L (2013-2022)

Crate Engine for Ford 2.7L (2013-2022)

$ 6811
  • CORE DEPOSIT ($1000.00)

The Ford 2.7L EcoBoost engine is a popular engine option that offers a balance of power and efficiency. Here are some key features and specs:

  • The engine is a turbocharged V6 with a displacement of 2.7 liters (hence the name).

  • It produces up to 325 horsepower and 400 lb-ft of torque, which is impressive considering its relatively small size.

  • The EcoBoost technology helps to improve fuel efficiency by using direct injection and turbocharging to reduce wasted energy.

  • The engine is often used in Ford’s F-150 pickup trucks, but it’s also been used in other vehicles like the Ford Edge SUV.

  • It’s known for its towing capability, with some F-150 models able to tow up to 8,500 pounds.

  • The engine is designed to be durable and reliable, with features like a high-strength aluminum block and cylinder heads, and a forged steel crankshaft.

  • Overall, the Ford 2.7L EcoBoost engine is a great choice for those who want a powerful and efficient engine that can handle heavy loads and tough conditions.

What is NEW & Improved on Fraser Engines 2.7L Ford ECOBOOST (2013-2022) engine?

This remanufactured FORD 2.7L ECOBOOST (2013-2022) engine includes the following enhancements from Fraser Engines:

  • Bore and hone all cylinders to OEM clearances (We check all clearances within .0001 of inch),
  • Decking cylinder head(s) and block for straightness,
  • Cutting valve seats and valves to proper degree,
  • Line boring/honing crankshaft/camshaft tunnels,
  • Ground & polish crankshaft, new or remanufactured camshaft(s),
  • New main bearings, rod bearings, pistons, piston rings, lifters, pushrods (if equipped), timing components, oil pump, head bolts,
  • All new internal gaskets and seals.
  • All finishing gaskets are included (MAY VARY PER APPLICATION).

Engine Specs

Lima plant, Ohio, the USA
Production years
Cylinder block material
Compacted graphite iron
Cylinder head material
Fuel type
Fuel system
Direct injection – 2013-2017;
Direct injection + port injection since 2018
Number of cylinders
Valves per cylinder
Valvetrain layout
Bore, mm
83.0 mm (3.27 in)
Stroke, mm
83.0 mm (3.27 in)
Displacement, cc
2,694 cc (164 cu in)
Type of internal combustion engine
Four-stroke, turbocharged
Compression Ratio
Power, hp
315-335 hp (235-250 kW)/ 5,000-5,750
Torque, lb ft
350-400 lb-ft (475-542 Nm)/ 3,000-3,250
Engine weight
Firing order
Engine oil weight
SAE 5W-30 full synthetic motor oil
Engine oil capacity, liter
5.7 l (6.0 qt) – with oil filter
Oil change interval, mile
10,000 (15,000 km) / 12 months
2013-2022 Ford F-150
2013-2022 Ford Bronco
2013-2022 Ford Edge Sport
2013-2022 Ford Edge ST
2013-2022 Ford Fusion Sport
2013-2022 Lincoln MKX
2013-2022 Lincoln Continental
2013-2022 Lincoln Nautilus
