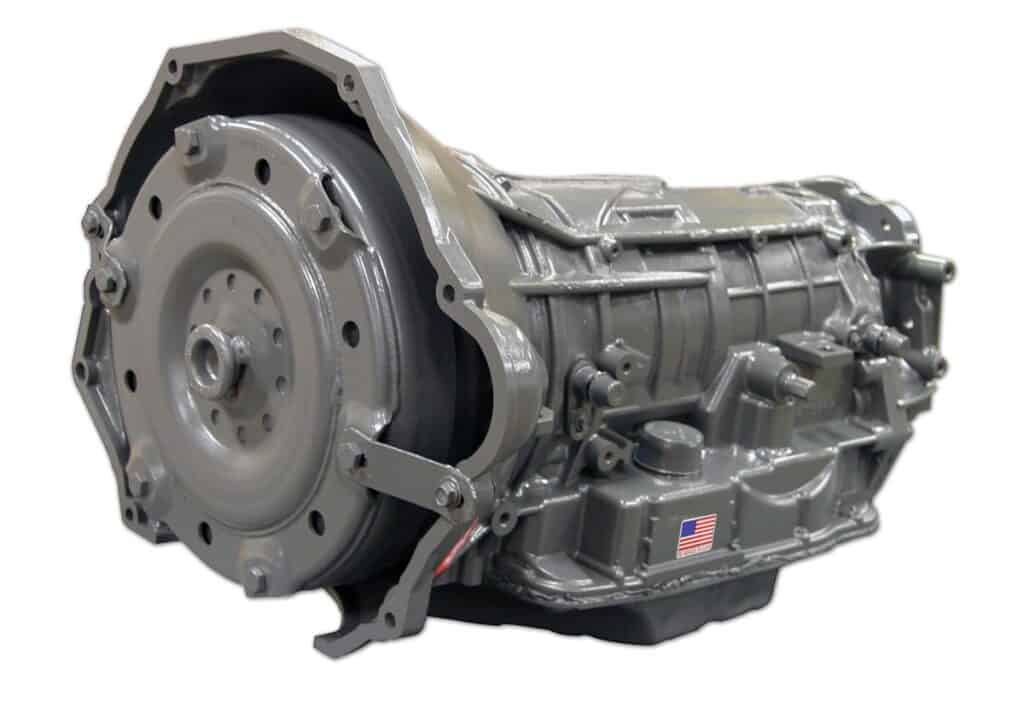

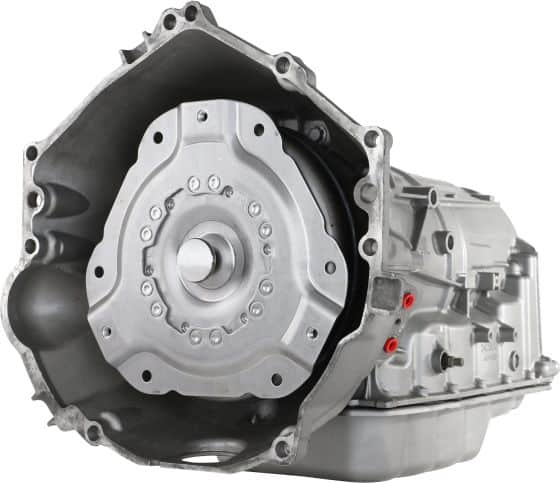

FRASER ENGINES - 6L80 Automatic Transmission Assembly

NEED SOME HELP? GIVE US A CALL - (800) 731-3177

REMANUFACTURED transmission - 5 year warranty available

normal price: $3150.00

sale price: $2599.00

  • Fully Refundable Core Deposit: $900.00
  • Round Trip Shipping: $250.00
  • 3 Year Warranty Included
In Stock

Important Notes

  • Reflash required.
  • Reset adaptive values.

TOTAL: $2599.00 + CORE + SHIPPING

BUY IT NOW
Payments as low as $95.00 / month! - Apply for Financing

build process

WARRANTY UPGRADES & ADD-ONS

3 Year NO FAULT Warranty

$249.00

5 Year FRASER ELITE PRO Warranty

$599.00

Transmission Fluid

$102.00

Description

• A remanufactured and improved torque converter is included with every transmission.
• To eliminate the possibility of front seal leaks, vibration, and premature bushing wear, all torque converters are tested for leaks, lock-up, concentricity, and balance.
• Every fully remanufactured valve body, with complete system correction and recalibration kit, is tested independently.
• All wear-prone valves are restored to stringent specifications and vacuum tested to confirm proper function.
• Each remanufactured transmission is hot, cold, load, and simulated road tested using our proprietary CARS (Computer-Aided Road Simulation) dynamometer program.
• All remanufactured transmissions are backed by the industry’s best, no-hassle nationwide warranty.

Tech Updates

• Fluid pump is fully detailed with resurfaced pump rotor mating surfaces and machined pump body mating surfaces to maintain correct fluid pressures.
• Late style stator support shaft with updated seal rings used exclusively in all units to eliminate seal leakage.
• Installed upgraded O.E. 38-element low sprag.
• Fully remanufactured torque converter is tested for leaks, lockup, concentricity, and balance. Upgrades exceed OE requirements and eliminate the possibility of front seal leaks, premature bushing wear, and vibration.
• Boost sleeves and oversized pr valve to restore pressure and prevent converter ballooning.
• Oversized AFL valve in valve body.
• Planetary covers removed and replaced for thorough cleaning.
• Tru-Flat qualification process applied to transmission case, valve body, pump, and channel plate prevent cross leaks and pressure losses.
• Every transmission is cold-and hot-tested using a proprietary dynamometer testing program that includes fully synthetic automatic transmission fluid and a filtration system.
• Testing and flushing of TEHCMS.
• New pressure switch films.

Part Attributes

  • Bell Housing Included: Yes
  • Transmission Family: 6L80
  • Radiator Included: No
  • Pan Bolts: 18
  • Transmission Fluid: 10
  • Yoke Style: No Yoke
  • Radiator Replacement Required: No
  • Transmission Speeds: 6-Speed
  • Lockup: Yes
  • Torque Converter Included: Yes
  • Cooler Included: No
  • Average R&R: 8.5
  • Bell Housing: 1 Hole at 12 O’clock
  • Tail Housing: Without
  • Fluid Type: PZL-LVMULTI
  • Cooler Replacement Required: No

What’s in the box?

  • Cooler Line Gasket: 1
  • Dipstick Boot: 1
  • Transfer Case O-ring: 1
  • Dipstick Plug: 1
  • Install Guide: 1

Weight & Dimensions

  • Weight: 245 lbs.
  • Height: 25″
  • Width: 26″
  • Length: 41″

(OPTIONAL) - Check Vehicle Fitment with VIN Number

The 6L80 Transmission: Advanced Performance and Durability for Modern Vehicles

The 6L80 transmission is a six-speed automatic transmission developed by General Motors, renowned for its exceptional performance, strength, and efficiency. Designed for rear-wheel-drive (RWD) and four-wheel-drive (4WD) vehicles, the 6L80 is a top choice for trucks, SUVs, and performance cars, offering a seamless blend of power, versatility, and cutting-edge technology.

Key Features of the 6L80 Transmission

Advanced Gear Ratios:

  • Six forward gears provide smooth, efficient power delivery across a wide range of speeds.
  • Optimized for improved fuel economy and superior driving performance.

Robust and Versatile Design:

  • Engineered to handle high torque loads, making it ideal for heavy-duty applications and towing.
  • Features durable construction for long-term reliability under demanding conditions.

Integrated Cooling System:

  • Advanced cooling mechanisms maintain optimal operating temperatures.
  • Minimizes the risk of overheating during high-demand situations, such as towing or hauling.

Wide Range of Applications:

  • Compatible with a variety of GM vehicles, including full-size trucks, SUVs, and performance cars.
  • Found in popular models like the Chevrolet Silverado, GMC Sierra, and Chevrolet Camaro.

Eco-Friendly and Efficient:

  • Designed to meet or exceed emissions standards, reducing environmental impact.
  • Offers exceptional fuel efficiency without compromising power.

Common Applications of the 6L80 Transmission

The 6L80 transmission powers many well-known GM vehicles, ensuring reliable performance for diverse driving needs:

  • Chevrolet Silverado 1500
  • GMC Sierra 1500
  • Chevrolet Tahoe
  • GMC Yukon
  • Chevrolet Suburban
  • Chevrolet Express
  • Chevrolet Camaro
  • Cadillac Escalade

Why Choose Fraser Engines for Your 6L80 Transmission?

At Fraser Engines, we deliver high-quality remanufactured transmissions like the 6L80, built to exceed expectations. Our transmissions include:

  • Industry-Leading Warranties: Providing peace of mind with exceptional coverage.
  • Enhanced Components: Featuring upgraded parts for increased durability and performance.
  • Flexible Financing Options: Affordable solutions tailored to fit your budget.

Contact Us Today

Searching for a 6L80 transmission that delivers unmatched strength, efficiency, and performance? Contact Fraser Engines at 800-731-3177 or visit our website to browse our selection of remanufactured transmissions designed to meet your needs.
